What is Vaporesso Revenger X Kit?

Revenger X is so immersive that the device itself disappears into the experience. The mechanical buttons now give way to a highly responsive touch buttons, bringing out the more integrated look of the IML interface. Built with OMNI Board 2.2, in additional to all the advanced settings and output modes, it now has a more friendly UI, easier to navigate for all vapers. Equipped with NRG tank improved, you will be rest assured enjoying the flavor and vapor out of the variety of GT cores available.

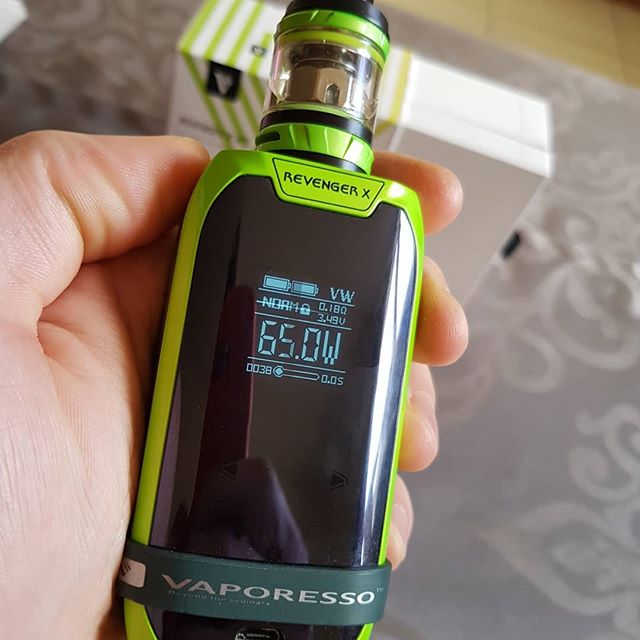

Vaporesso Revenger X Mod

1. Switch On/Off: Press the fire button 5 times in quick succession within 2 seconds to turn the device on. In the same way, the device will be powered off after 5 presses.

2. Vaping: Hold the fire button and inhale through the mouthpiece. Release the fire button and exhale.

3. Screen Display: After switch on, the OLED displays voltage resistance, battery level, temperature, output wattage etc. And the screen is locked. After switch on, the display will change to Real Time Clock after 10 seconds if unused and the Real Clock will be shut off after 15 minutes if unused. Press “+” or “-” or Mode button once and the screen will be lit with Real Time Clock display and press “+” or “-” or Mode button again, the screen will be lit with main manual. Press the fire button at any time, the screen will be lit with main manual.

4. Automatic atomizer recognition: The mod will read the coil’s resistance as soon as the connection is detected. It will also recognize coil type, when a kanthal coil is used, the mod will shift from TC to wattage mode automatically.

5. Adjustment buttons lock/unlock: The touch button always stays at lock status once the home screen switch on. For unlock the touch buttons, please press fire button for 3 times. For manually lock the touch buttons, please press fire button for 1 time (only works in the home screen interface)

6. Switch vaping modes: After unlock the touch buttons, press the mode button for three seconds or quick press the mode button for 3 time to vaping modes selected menu and system setting menu.

USB Function

1. Charging: It is with Quick Charge System and equalizing charge system. Simply plug in the USB cable to charge the battery, OLED display current battery level (0%, 20%, 50%, 80%, and 100%) and the Remaining Charging Time to get the battery fully charge. The Remaining Charging Time will be shown in every10 minutes. The display will remain lit while charging.

2. Firmware update and customizing: Can be updated and customized through a simple software that can be downloaded directly from our website. The software will be made to run on Windows systems and will be available in English. It will also include a “help”sections for urgent questions. The directions on how to use our software will be found on our website and Facebook page.

NRG tank

1. Adjustment of airflow: The bottom airflow system can be adjusted with slight twisting of the airflow ring.

2. Filling E-liquid: The Slide-n-Fill design only asks you to slide the top lip counter clockwise to the fullest extend. Fill in juice through the opening and slide the top back.

3. Changing Atomizer: Remove the base and unscrew the GT Cores and insert the new GT cores onto the base. Secure the base back in place. There are a variety of GT cores available for NRG SE Tank series. Please select the GT Cores you desire.
