Thank you for choosing Vaporesso Products!
Switcher with NRG by Vaporesso, a really multi-purpose device for vape with fun , brings the interaction into vaping with its all-metal case fully replaceable, creating different looks that you like.
A variety of colors and authentic precision covers maps your taste. The Optional lighting version( Switcher LE) will make your vaping shining and fun!
The masculine 510 interface holds the NRG Tank secure and presents the power while the leather hand grip brings outstanding feel!
Most up-to-date chipset OMNI Board 2.6, features the simplest operation with the newest addition of graphical virtual keys , “Unlock” button , puff number statistics and high power protection function for small power atomizer.
Equipped with NRG Tank, featuring innovative GT Cores that comes in traditional and significant CCELL Coil.
Form your own Kit!
Please read this manual carefully to ensure proper use. For additional information or questions regarding to this product or its use, please visit www.vaporesso.com
Main features
● Totally Replaceable Design, brings the interaction into vaping with its all-metal case fully replaceable, creating different looks that you like.
● Masculine big-510 Interface, secure and presents the power, extremely friendly to large capacity atomizer.
● Quick Charge System, maximum 2.5A, the fastest USB charging in the industry.
● OMNI Board 2.6, simplest operation with the newest addition of graphical virtual keys , “Unlock” button, puff number statistics and high power protection function for small power atomizer.
Specification:
Switcher Mod
Diameter: 53x89x31mm
Battery: 2×18650 Battery(not included)
Output Wattage: 5w to 220W
Display: 0.96” OLED
Voltage Range: 0V-8.5V
Resistance range: 0.05Ω-5Ω
Temperatue Control Range:100°C-315°C/200F-600F Output Modes: Smart VW(H/N/S), CCW, CCT,
VT(NI,TI,SS), TCR(M1,M2), RCT, BYPASS
Protection Functions
USB Input Protection
Equalizing charge system
Low voltage protection
Output short circuit protection
Low resistance protection
Over-temperature protection
Overcurrent protection
Anti-loaded battery protection
Small power atormizer protection
Switcher with NRG Package Include:
1 x Switcher Mod
1 x NRG Tank with GT8 Core preinstalled
1 x Extra GT4 Core
1 x Extra Pyrex Glass Tube
1 x USB Charger Cable
Switcher Mod Package Include:
1 x Switcher Mod
1 x USB Charger Cable
NRG Tank / NRG Mini Tank NRG: 5ml / 26.5x56mm / 66 g NRG Mini: 2ml / 23x47mm / 48g
How to Use
1. Switch On/Off:
Press the fire button 5 times in quick succession within 2 seconds to turn the device on. In the same way, the device will be powered off after 5 presses.
2. Vaping:
Hold the fire button and inhale through the mouthpiece. Release the fire button and exhale.
3. Screen Display:
After switching on, the OLED displays voltage
resistance, battery level, temperature, output wattage etc. The display
will change to Real Time Clock after 10 seconds if unused and the
Real Time Clock will be shut off after 15 minutes if unused. Press “+”
or “-“ or Mode button once and the screen will be lit with Real Time
Clock display and press “+” or “-“ or Mode button again, the screen
will be lit with main menu. Press the fire button at any time, the screen
will be lit with main menu.
New dynamic icons have been added in the main interface when you
press the “+, -” button, Mode button or the lock/unlock and system
On/Off button.
4. Automatic atomizer recognition:
The mod will read the coil’s resistance as
soon as the connection is detected. It will also recognize coil type, when a kanthal
coil is used, the mod will shift from TC to wattage mode automatically.
5. Adjustment buttons lock/unlock:
For locking the buttons, please press fire
button for 3 times. In the same way,press fire button for 3 times，the locked
buttons can be unlocked.
6. Switch display mode:
After unlocking the buttons, press the mode button for three seconds or quick press the mode button for 3 times to vaping modes selected menu and system setting menu.
7. Charging:
It is with Quick Charge System and equalizing charge system.
Simply plug in the USB cable to charge the battery, the OLED display current battery level (0%, 20%, 50%, 80%, and 100%) and the Remaining Charging Time to get the battery fully charged. The Remaining Charging Time will be shown in every 10 minutes. And the display will remain lit while charging.
8. Firmware update and customizing:
Firmware update and customizing: Can be updated and customized through a simple software that can be downloaded directly from our website(www.vapor-esso.com). The software will be made to run on Windows and Osmac systems and will be available in English. It will also include a “help” sections for urgent questions. The directions on how to use oursoftware will be found on our website and Facebook page.

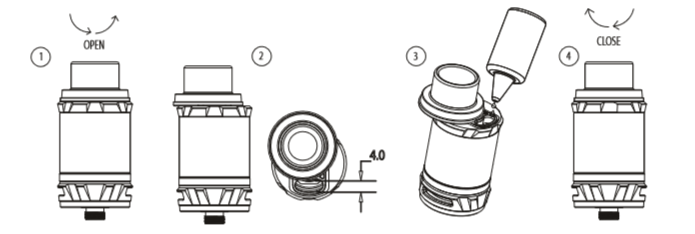

9. Filling E-liquid:
The Slide-n-Fill design only asks you to slide the top lip counter clockwise to the fullest extend. Fill in juice through the opening and slide the top back.
10. Change Lighting Pattern:
When in the “SYSTEM SET” menu,select the “LIGHT” submenu,there are 9 kinds of light display modes,the customized LED lighting pattern can be set in the custom mode. （Switcher LE only）
11. How to replace the case:
How to Set the Mode
1) Smart VW mode:
As an advanced Variable Wattage mode, there are 3 levels of VW: VW-High stands for High; VW-Normal stands for Normal; VW-Soft stands for Soft. The default setting is Normal. VW(High/Normal/Soft) will guarantee your mod’ s ability to skillfully select the adequate average wattage for your atomizer, according to its resistance reading, automatically.
Simplest operation with the newest addition of puff number statistics and High power protection for small power atomizer (coils over 1Ω) in VW mode. it can count the time of the latest 10 puffs and protect the small power atomizer, as right pictures:
2) In CCW mode: While on VW mode, using the plus and minus buttons (Ramp up time and consequent performance) to confirm and to implement any modifica-tions to the wattage line; move on to the next bar with a press of the fire button.When all modifications are final set, please press the mode button to save and exit.
3) In VT-SS/VT-Ni/VT-TI/TCR(M1, M2) Mode:
When set in VT-SS/VT-Ni/VT-TI mode, the device can separately support 316 Stainless Steel, Nickel 200,and Titanium coils. The OMNI Board 2.6 allows you to change the start up wattage under temperate control mode. The default wattage is 75W. You could also adjust the value of the coil within the given range.
In TCR (Temperature Coefficient of Resistance) mode, the device can support different temperature control coils within different TCR value ranges and you can set the TCR at different values within proper range.
The Setting of TCR Mode (M1,M2):
When set in TCR-M1,TCR-M2 mode
1. Press mode button to select the features setting among TCR Set, POWER Set ;
2. Press the up or down button to increase or decrease the TCR value and the power wattage according to the material of the coil you used;
Following are different TCR value ranges for different coils for your reference:
Note: 1.The TCR value in the sheet is 10 multiplied of the actual TCR.
2.Our total range of TCR value is 1-1000.
Adjust temperature: Temperature can be adjusted from 100-315℃ or 200-600℉ by pressing up button or down button, up button to increase and down button to decrease. Each press of the up or down button will increase or decrease the temperature setting by 5℃ or 10℉. Long press up button or down button can rapidly increase or decrease temperature setting.
Automatic atomizer recognition: To achieve better temperature control effect, the mod will ask the user if the new atomizer is attached. ” OLD LOAD: -, NEW LOAD: + ” will appear on the display. If a new atomizer is attached, press ” + “, the mod will read new resistance; if not, press ” – “, the mod will read at locked resistance.
4) In CCT mode:
While on any VT mode, press the mode button to select CCT. using the plus and minus buttons (Ramp up time and consequent performance) to confirm and to implement any modifications to the temperature line; move on to the next bar with a press of the fire button.When all modifications are final set, please press the mode button to save and exit.
5) In Bypass mode:
Direct output voltage system is applied in Bypass mode. The higher the batterylevel is, the higher the output voltage is. When set in this mode, the device can support a coil whose resistance is within the range of 0.05-5ohm.
6) Smart ON/OFF:
As an advanced Variable Wattage mode, Smart VW could be switched on and off on the main manual and it does not impact the VW(H/N/S). Enter Smart ON/OFF and press Yes or NO to confirm.
7) Screen Timeout:
The default timeout setting is 10 seconds of main menu and then switch to Real Time Clock for another 15 minutes. The timeout setting could be adjusted from 3 seconds up to 60 minutes. Enter the Screen Timeout and adjust the time up or down as you wish. For example, if you choose 3 seconds, after 10 seconds of showing the main menu, the display will be showing 3 seconds of Real Time Clock.
8) Default:
You could reset to default setting by entering Default and pressing YES.
Caution
1. It is intended for usage by people over 18, NOT by non-smokers, children, pregnant or breast-feeding women, people with or at risk of heart disease, or people taking medication for depression or asthma.
The electronic cigarette is not a smoking cessation device.
2. Please keep this unit out of reach of children or pets;
3. Please don’t drop, throw or abuse your Mod,it may cause damage.
4. Do not place it in extremely temperatures;
5. Do not try to disassemble the battery.
Battery using:
1. Please use correct charging equipment by reputable suppliers.
2. Please choose good batteries from reputable companies.
3. Please put the batteries on a hard surface when charging.
4. Please turn off the device when it is not in use.
5. Please use dry cloth to clean the battery and its terminals when needed.
6. Don’ t use batteries with torn casings.
7. Don’ t leave the charging batteries unattended.
8. Don’ t expose the battery to extreme heat, cold or direct sunlight.
9. Keep away from water or any liquids.
Precautions:
1. Don’ t use the device in stormy weather or dust condition.
2. Connect the USB port and charger properly. Unplug the charger when the charging is completed.
3. Don’ t put the device in your pocket or handbag directly; don’ t mix it with coins, jewelry or other hard objects.
4. The charger and battery may heat when charging, keep away from flammable gas, liquid or other materials.
This refillable electronic cigarette is intended for use with compatible liquid, which may contain nicotine. Nicotine is an addictive substance and its use is not recommended for use by the following:
– Non smokers or persons under the legal smoking age
– Pregnant or breastfeeding women
– Persons experiencing heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease or difficulty breathing due to bronchitis, emphysema or asthma.
– Persons with an overactive thyroid gland or experiencing phaeochromocytoma (a tumour of
the adrenal gland that can affect blood pressure)
– Those taking the medications Theophylline, Ropinirole or Clozapone
You may experience the following side effects if you use nicotine containing
e-liquid in combination with this product. If this happens, please consult a healthcare professional and show them this leaflet if possible:
– Feeling faint / – Nausea /- Dizziness /- Headache /- Coughing
– Chest palpitation or an irregular heart rate /- Irritation of the mouth or throat
– Stomach discomfort /- Hiccups /- Nasal congestion/- Vomition
This device should not be used by persons under the age of 18 or non-smokers.
Designed in California
Manufacturer:Shenzhen Smoore Technology Limited
Add:Building 8,Dongcai Industrial Park,Gushu Town,
Baoan District,Shenzhen, China 518102
Management System of SMOORE factory has been assessed and registered under the Norm cGMP, ISO13485, ISO9001 and ISO14001.TM and ©2016 Vaporesso All rights reserved
